What is the definition of a capacitor?

Capacitors are essential components in the field of electronics, with the primary function of storing and releasing electrical energy. This makes them critical in various applications, including power supply systems, signal processing, and energy storage. Capacitors consist of two conductive plates separated by a dielectric material, and their ability to store charge is determined by their capacitance value, typically measured in farads (F).

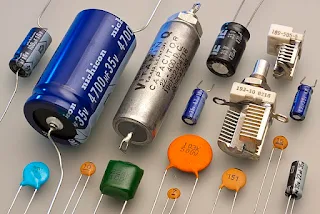

The performance of a capacitor is influenced by factors such as its dielectric material, capacitance range, voltage rating, and other electrical characteristics. Different types of capacitors have been developed to meet the needs of specific applications, from high-frequency circuits to power supply filtering and energy storage. This article explores the main types of capacitors—ceramic, electrolytic, tantalum, film, supercapacitors, and mica—and their roles in modern electronics.

1. Ceramic Capacitor

Ceramic capacitors are among the most widely used capacitors due to their versatility, small size, and low cost. They use ceramic material as the dielectric, and their construction can vary from multilayer ceramic capacitors (MLCC) to single-layer designs. Ceramic capacitors come in a wide range of capacitance values, typically ranging from picofarads (pF) to microfarads (μF), and can handle both low and high voltages.

Applications:

• High-frequency circuits: Due to their low parasitic inductance and small size, ceramic capacitors are ideal for high-frequency applications such as RF (radio frequency) circuits, oscillators, and filters.
• Decoupling: Ceramic capacitors are commonly used for decoupling or bypassing in circuits to reduce noise by smoothing out voltage fluctuations.
• Temperature compensation: Certain ceramic capacitors, like Class 1 capacitors (C0G/NP0), are used in precision circuits where temperature stability is essential.

Key Characteristics:

• Small size: Ceramic capacitors are compact, making them suitable for use in densely packed circuits.
• High stability: Some types of ceramic capacitors, like Class 1 ceramics, offer excellent stability over temperature changes.
• Low cost: Ceramic capacitors are inexpensive and widely available.

Despite their many advantages, ceramic capacitors generally have lower capacitance values compared to other types like electrolytic capacitors. They are most useful in applications that require small capacitance and stable performance over a wide frequency range.

2. Electrolytic Capacitor

Electrolytic capacitors are known for their high capacitance values, often ranging from microfarads (μF) to thousands of microfarads, making them ideal for applications requiring large energy storage. These capacitors are polarized, meaning they have a positive and a negative lead, and they must be installed in the correct orientation to function properly.

Applications:

• Power supply filtering: Electrolytic capacitors are commonly used in power supplies to filter out ripple voltage, providing smooth DC voltage to circuits.
• Coupling and decoupling: In audio circuits and amplifiers, electrolytic capacitors can be used to couple or decouple signals.
• Energy storage: Due to their high capacitance, electrolytic capacitors are used in applications where large amounts of energy need to be stored and released quickly.

Key Characteristics:

• High capacitance: Electrolytic capacitors offer much higher capacitance than ceramic capacitors, making them ideal for energy storage and filtering applications.
• Polarization: They are polarized components, which means they must be connected with the correct polarity to avoid damage.
• Limited lifespan: Electrolytic capacitors, particularly aluminum electrolytics, have a shorter lifespan than other capacitor types, as their internal electrolyte can dry out over time.

While electrolytic capacitors are highly effective in applications requiring large capacitance, they are less stable than other types, such as film capacitors, and are more sensitive to temperature and voltage stress.

3. Tantalum Capacitor

Tantalum capacitors are a type of electrolytic capacitor that uses tantalum metal as the anode material. They offer stable performance, high reliability, and excellent capacitance retention over a wide range of operating conditions. Unlike aluminum electrolytic capacitors, tantalum capacitors are available in both polarized and non-polarized versions.

Applications:

• Portable electronics: Due to their small size and reliability, tantalum capacitors are commonly used in smartphones, tablets, and other portable electronic devices.
• Timing and filtering circuits: Tantalum capacitors are often used in precision circuits for timing and filtering applications where stability and reliability are crucial.
• Medical and military equipment: Their stability and long life make tantalum capacitors suitable for use in medical devices and military-grade electronics.

Key Characteristics:

• Stable performance: Tantalum capacitors offer high stability across a range of temperatures and operating conditions.
• High reliability: These capacitors are known for their long life and high reliability, making them ideal for mission-critical applications.
• Sensitive to voltage spikes: Tantalum capacitors are more sensitive to voltage surges than aluminum electrolytics, which can lead to catastrophic failure if not properly protected.

While tantalum capacitors offer many advantages, they are more expensive than other types of capacitors, such as aluminum electrolytics, and require careful circuit design to avoid damage from voltage spikes.

4. Film Capacitor

Film capacitors use a thin plastic film as the dielectric material, making them highly stable and suitable for precision applications. These capacitors come in a variety of types, including polyester, polypropylene, and polystyrene, each with its own specific characteristics.

Applications:

• Precision circuits: Film capacitors are widely used in timing circuits, filters, and oscillators where high stability and low inductance are required.
• Power electronics: Due to their high voltage ratings and stability, film capacitors are often used in power electronics, including motor control and power factor correction circuits.
• Audio circuits: Film capacitors are preferred in audio circuits for signal coupling and decoupling due to their low distortion and stable performance.

Key Characteristics:

• High stability: Film capacitors offer excellent stability in terms of capacitance and voltage ratings, making them suitable for precision applications.
• Low inductance: These capacitors exhibit low parasitic inductance, which makes them ideal for high-frequency applications.
• Non-polarized: Film capacitors are non-polarized, allowing them to be used in AC circuits without concern for polarity.

Film capacitors are highly reliable, with a long operational lifespan, but they tend to be larger in size compared to ceramic and tantalum capacitors, particularly at higher capacitance values.

5. Supercapacitor (Ultracapacitor)

Supercapacitors, also known as ultracapacitors, are capable of storing significantly more energy than conventional capacitors. They offer capacitance values in the range of farads (F), far exceeding typical capacitor ranges. Supercapacitors bridge the gap between traditional capacitors and batteries in terms of energy storage and discharge capabilities.

Applications:

• Energy storage: Supercapacitors are used in applications requiring rapid energy storage and discharge, such as backup power systems and uninterruptible power supplies (UPS).
• Regenerative braking: In electric vehicles and hybrid systems, supercapacitors are used to capture and store energy during braking for reuse during acceleration.
• Renewable energy: Supercapacitors are used in renewable energy systems for energy buffering and power stabilization.

Key Characteristics:

• Very high capacitance: Supercapacitors can store large amounts of energy compared to other capacitor types.
• Fast charge and discharge: These capacitors can charge and discharge much faster than batteries, making them suitable for applications where rapid energy transfer is required.
• Long cycle life: Supercapacitors can withstand millions of charge and discharge cycles, far exceeding the cycle life of batteries.

Supercapacitors are less suitable for applications requiring long-term energy storage due to their higher self-discharge rate compared to batteries.

6. Mica Capacitor

Mica capacitors use mica as the dielectric material, providing exceptional precision, stability, and reliability. These capacitors are typically used in high-frequency applications where low losses and precise capacitance are critical.

Applications:

• Radio frequency (RF) circuits: Mica capacitors are commonly used in RF circuits and oscillators where stability and low signal loss are essential.
• High-voltage applications: Due to their high dielectric strength, mica capacitors are often used in high-voltage applications.

Key Characteristics:

• High precision: Mica capacitors offer extremely precise capacitance values and are stable over a wide range of temperatures and frequencies.
• Low loss: These capacitors have very low dielectric loss, making them ideal for high-frequency applications.
• Long lifespan: Mica capacitors are highly reliable and have a long operational life.

Mica capacitors are more expensive than other types of capacitors, but their high precision and stability make them indispensable in applications where performance is critical.

Conclusion

Capacitors are vital components in electronics, with each type offering unique properties suited to specific applications. Ceramic capacitors are ideal for high-frequency circuits and decoupling, while electrolytic capacitors provide high capacitance for power supply filtering. Tantalum capacitors offer stable performance in portable and precision electronics, while film capacitors excel in precision circuits and power electronics. Supercapacitors provide unmatched energy storage and rapid discharge capabilities, and mica capacitors are indispensable in high-frequency and high-voltage applications. Understanding the distinct advantages of each capacitor type ensures the right choice for any electronic design.
